Price: $14.99
(as of Dec 31, 2024 13:05:29 UTC – Details)
Product Description

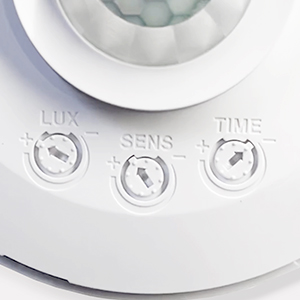

This ceiling mount occupancy sensor uses passive infrared (PIR) technology to detect movement in the surrounding space and automatically turn the lights on and off based on motion in the room. It is designed to replace a standard light or fan switch and is ideal for 120V residential applications including entryways, hallways, closets, storage areas, garages or any other area that requires a light or fan to be active while occupied. The PIR sensor detects changes in the infrared energy given off by occupants as they move within the coverage area. When occupancy is detected, a self-contained relay switches the connected load on. An internal timer automatically turns off the load after a selectable period of inactivity ranging from 18 seconds to 10 minutes. This sensor also has adjustable sensitivity, time delay and light level settings so that you can customize it for your application. It has 360-degree coverage with a radius of 10ft – 13ft when mounted at a height of 10 ft. It also has a detection angle of 150 – 180 degrees. This sensor is ETL Listed and is backed by Maxxima for 1 year.
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
3.7 out of 5 stars
300
3.5 out of 5 stars
74
4.0 out of 5 stars
30
3.8 out of 5 stars
56
Price
$26.99$26.99 $14.99$14.99 $11.99$11.99 $24.99$24.99
Motion Sensor
✓
✓
✓
✓
Voltage
120-277V 120V 120V 120-277V
Adjustable Time Delay
✓
✓
✓
✓
Adjustable Sensitivity
✓
✓
✓
✓
Adjustable Light Level Sensing
✓
✓
✓
✓
Mounting
Ceiling Ceiling Wall High Bay

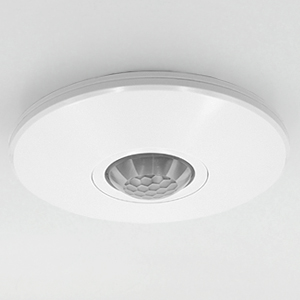

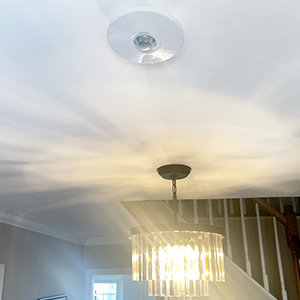

Ceiling Mount Sensor – 360° PIR ceiling mount occupancy sensor with automatic light ON/OFF feature. Provides 530 sq. ft. circular coverage and can be mounted up to 10 feet high.
Time-Controlled Lighting – Set your desired time for automatic light shut off. If no motion is detected within a range of 18 seconds to 10 minutes, the light will turn off. Control switches are conveniently located under the included cover plate.
Specifications and Compatibility – Max load incandescent: 1000W @ 120V, 150W Max Load LED, 1/4 HP, No Minimum Load. Compatible with LED, Incandescent, Electronic Ballast Fluorescent, Compact-fluorescent (CFL), Magnetic Low-Voltage (MLV) & Electronic Low-Voltage (ELV).
Adjustable Sensitivity – Customize the sensitivity to your preferences for automatic lighting that suits your needs. Operating temperature is -23° F to 86° F.
Easy Installation – All necessary hardware and an instruction manual are included for easy installation. This indoor sensor is perfect for hallways, bathrooms, storage areas, closets, mud rooms, pantries and more. ETL, Neutral wire required.
Joe –
works verry well
easy to in stall and saving me money
Eric E. –
Wires Exposed
The device is constructed so that wires are exposed. Wires enter on side of device. Does not meet our building / electrical code and is unsightly. Missed return window and will discard.
Lancaster Parts & Equipment –
Doesn’t meet US electrical codes
It turns the light on and off.However by the time you get done piddle fartin’ around making the installation meet code, you might’ve well bought a more expensive unit and been money ahead.The wire connections on this unit make it so the wiring is exposed even after installation. The unit also does not cover a round box, so several code violations.I used an onwall round box cut out so the unit’s mounting screws pull it against the ceiling with the plastic box sandwiched between the unit and ceiling. Only way I figured out how to satisfy the AHJ.
Oscar –
Easy to install
El Motion sensor se mira muy bien y es fácil de instalar.
GK –
3 way setup to activate recepticle and lights in garage
The good: see my wiring diagram. I was able to use two occ sensors in parallel (3 way operation) to activate recepticles and therefore turn lights on automatically.Bad: false advertisement regarding operation down to very cold temperatures. The listed operating temps are in Celsius and not in fehrenheit . Had I known that was the case, I would have bought a competitive brand for sevens dollars cheaper price. I got deceived by that.
John C. –
Really work good
We put them in an area that is not used often so to ensure lights were not left on these were installed in the ceiling.
George V. –
Pass on this PIR Sensor and Spend a Little More
Unfortunately, this product arrived already opened, used and was dirty. In addition it doesnât accept wiring from underneath the unit and the harness doesnât work well with standard 120V household wiring.
Juan Manuel lobato –
Funciona bien
Funciona bien , voy a comprar mas
